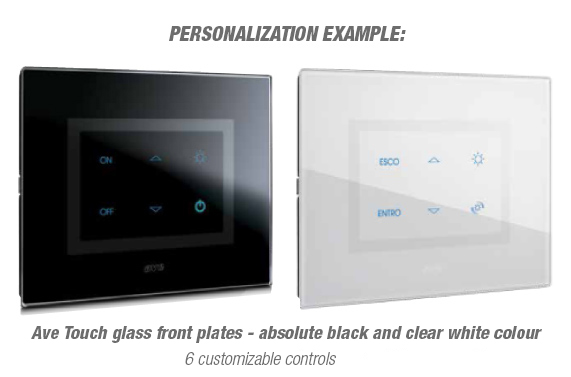

The Ave Touch wiring accessories series has been expanded with a new multi-touch module for hidden installation that can have up to 6 independent controls that the user can personalize. Personalization of the symbols on front plates can be done using special software. The hidden multi-touch device occupies 3 modules from System 44 and is installed in a standard 3-module box. It is manufactured in a version for traditional installations and in a home automation version.







• Dimensions: 3 standard S44 modules

• Power supply: 100÷240 Vac; 50-60 Hz

• Frontal sensitive area: 9 positions distributed over the entire front of the device (3 top, 3 centre and 3 bottom)

• 6 relay output with N.O. Dry contacts

• AC Load type:
   - ohmic load (cosφ1): 2 A at 250 Vac
   - incandescent load: 2 A at 250 Vac
   - inductive load (cosφ0,4): 1 A at 250 Vac
   - re-phased fluorescent load: 1 A at 250 Vac

• Controls:
   - softly touching the plate with a finger over the relevant LED
  - from a different points number using remote control touch buttons (cod. 442TC05) or N.O. buttons connected to the phase

• Status memory: ensures that the output relay status is saved in case of a mains power failure

• 9 frontal LEDs (of which only a maximum of 6 are on at the same time) for location in the dark

• The ability to set output functions: monostable, bistable or timed, shutters

• Functional interlock for shutter control

• Timed mode with the possibility of time settings in a range of between 5 and 90 seconds for shuttercontrol, between 20 seconds and 10 minutes for other loads

• The ability to set 2 degrees of operating sensitivity of the device: touching the plate or at a distance of 4 mm

• Installation: flush mounting in rectangular boxes for 3 modules behind glass finish plates
